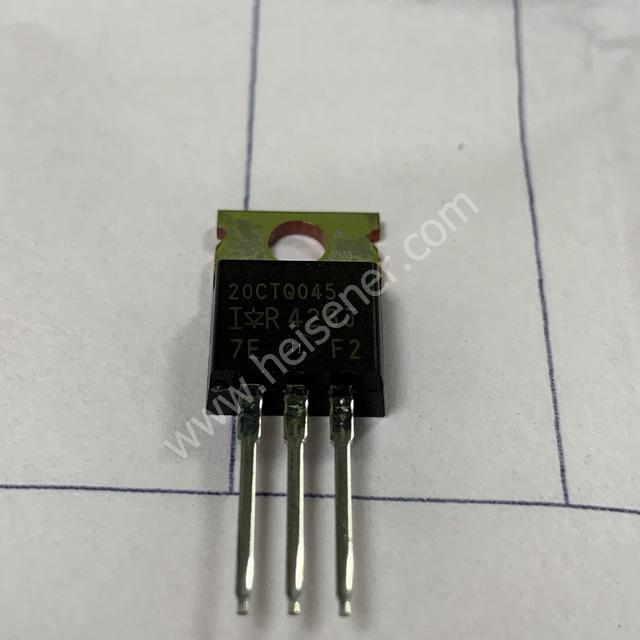

Send Message20CTQ045
45V|10A
OriginalGlobal SourcingFast DeliveryQuality CertifiedTechnical SupportBulk Discount
DIODE ARRAY SCHOTTKY 45V TO220AB
Specifications
- Brand
- Vishay Semiconductor Diodes Division
- Package
- TO-220-3
- Packaging
- —
- Weight
- —
Total Inventory
353pcs
Ship within 8 hours
MOQ: 1 pcs
Certifications & Authorizations
Product Video
Discover how 20CTQ045 from Vishay Semiconductor Diodes Division fits into your design. Our component experts walk through key specifications, quality certifications, and typical application scenarios.
- Authentic sourcing with full traceability
- Rigorous incoming quality inspection
- Competitive pricing & global fast delivery
- Dedicated application engineering support
Technical Specifications
| Manufacturer | Vishay Semiconductor Diodes Division | |
| Series | - | |
| Diode Configuration | 1 Pair Common Cathode | |
| Diode Type | Schottky | |
| Voltage - DC Reverse (Vr) (Max) | 45V | |
| Current - Average Rectified (Io) (per Diode) | 10A | |
| Voltage - Forward (Vf) (Max) @ If | 640mV @ 10A | |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | |
| Reverse Recovery Time (trr) | - | |
| Current - Reverse Leakage @ Vr | 2mA @ 45V | |
| Operating Temperature - Junction | -55°C ~ 175°C | |
| Mounting Type | Through Hole | |
| Package / Case | TO-220-3 | |
| Supplier Device Package | TO-220AB |
