1N6283A
28.2V|-|1500W (1.5kW)
原装正品全球货源快速交付品质认证技术支持批量优惠

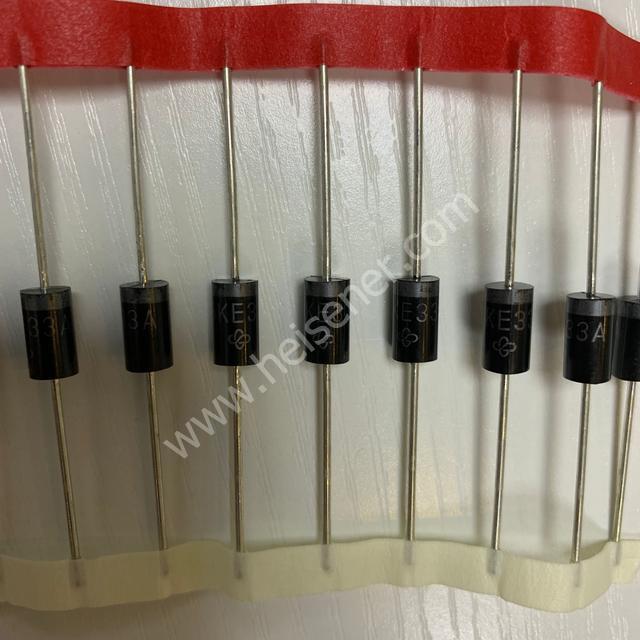

TVS DIODE 28.2V 45.7V AXIAL
规格参数
- 品牌
- ON Semiconductor
- 封装
- DO-201AD, Axial
- 包装方式
- —
库存总量
145个
12小时发货
起订量：1 个
认证与授权
产品视频
了解 ON Semiconductor 的 1N6283A 如何融入您的设计。我们的元件专家将介绍关键规格、品质认证及典型应用场景。
- 原厂采购，全程可追溯
- 严格的进料品质检验
- 具竞争力的价格 & 全球快速交货
- 专属应用工程技术支持
技术规格
| Manufacturer | ON Semiconductor | |
| Series | Mosorb™ | |
| Type | Zener | |
| Unidirectional Channels | 1 | |
| Bidirectional Channels | - | |
| Voltage - Reverse Standoff (Typ) | 28.2V | |
| Voltage - Breakdown (Min) | 31.4V | |
| Voltage - Clamping (Max) @ Ipp | 45.7V | |
| Current - Peak Pulse (10/1000µs) | - | |
| Power - Peak Pulse | 1500W (1.5kW) | |
| Power Line Protection | No | |
| Applications | General Purpose | |
| Capacitance @ Frequency | - | |
| Operating Temperature | -65°C ~ 175°C (TJ) | |
| Mounting Type | Through Hole | |
| Package / Case | DO-201AD, Axial | |
| Supplier Device Package | Axial |
